Promethues接入钉钉告警

前言

发件流程

Prometheus → Alertmanager → prometheus-webhook-dingtalk (带签名) → 钉钉

准备 钉钉群 – 创建自定义机器人 – Webhook 方式 – 安全设置 加签 （保存好秘钥） – 完成 – 保存机器人调用的Webhook地址

Prometheus配置告警规则

mkdir /usr/local/prometheus
docker run -d --name test -P prom/prometheus
docker cp test:/etc/prometheus/prometheus.yml /usr/local/prometheus
docker rm -f test

添加告警规则

cat rules/node.yml
groups:
  - name: 主机状态-监控告警
    rules:
      - alert: 主机状态
        expr: up{job="node"} == 0
        for: 1m
        labels:
          severity: 严重警告
        annotations:
          summary: "{{$labels.instance}} 服务器停止工作"
          description: "{{$labels.instance}} 已经停止1分钟以上"
​
      - alert: CPU使用情况
        expr: 100 - (avg by (instance) (irate(node_cpu_seconds_total{mode="idle"}[5m])) * 100) > 80
        for: 1m
        labels:
          severity: 一般警告
        annotations:
          summary: "{{$labels.instance}} CPU使用率过高！"
          description: "{{$labels.instance}} CPU使用大于80%(目前使用:{{ printf \"%.2f\" $value }}%)"
​
      - alert: 内存使用情况
        expr: 100 - (node_memory_MemAvailable_bytes / node_memory_MemTotal_bytes * 100) > 85
        for: 1m
        labels:
          severity: 严重警告
        annotations:
          summary: "{{$labels.instance}} 内存使用率过高！"
          description: "{{$labels.instance}} 内存使用大于85%(目前使用:{{ printf \"%.2f\" $value }}%)"
​
      - alert: Swap分区使用情况
        expr: (node_memory_SwapTotal_bytes - node_memory_SwapFree_bytes) / node_memory_SwapTotal_bytes * 100 > 80
        for: 1m
        labels:
          severity: 严重警告
        annotations:
          summary: "{{$labels.instance}} Swap内存使用率过高！"
          description: "{{$labels.instance}} Swap内存使用大于80%(目前使用:{{ printf \"%.2f\" $value }}%)"
​
      - alert: IO性能
        expr: max by (instance, device) (rate(node_disk_io_time_seconds_total[2m])) * 100 > 90
        for: 1m
        labels:
          severity: 一般警告
        annotations:
          summary: "设备 {{$labels.device}} 磁盘IO使用率过高！"
          description: "{{$labels.instance}} 的 {{$labels.device}} 当前磁盘IO大于90%(目前使用:{{ printf \"%.2f\" $value }}%)"
​
      - alert: 网络下载
        expr: max by (instance) (rate(node_network_receive_bytes_total[2m]) * 8 / 1000000) > 200
        for: 2m
        labels:
          severity: 一般警告
        annotations:
          summary: "{{$labels.instance}} 下载网络带宽过高！"
          description: "{{$labels.instance}} 下载网络带宽持续2分钟高于200Mbps，当前使用:{{ printf \"%.2f\" $value }}Mbps"
​
      - alert: 网络上传
        expr: max by (instance) (rate(node_network_transmit_bytes_total[2m]) * 8 / 1000000) > 200
        for: 2m
        labels:
          severity: 一般警告
        annotations:
          summary: "{{$labels.instance}} 上传网络带宽过高！"
          description: "{{$labels.instance}} 上传网络带宽持续2分钟高于200Mbps，当前使用:{{ printf \"%.2f\" $value }}Mbps"
​
      - alert: TCP会话
        expr: node_netstat_Tcp_CurrEstab > 5000
        for: 1m
        labels:
          severity: 一般警告
        annotations:
          summary: "{{$labels.instance}} TCP_ESTABLISHED过高！"
          description: "{{$labels.instance}} TCP_ESTABLISHED连接数为{{ printf \"%.0f\" $value }}，超过5000"
​
      - alert: 磁盘容量
        expr: 100 - (node_filesystem_free_bytes{fstype=~"ext.?|xfs"} / node_filesystem_size_bytes{fstype=~"ext.?|xfs"} * 100) > 90
        for: 1m
        labels:
          severity: 严重警告
        annotations:
          summary: "挂载点 {{$labels.mountpoint}} 磁盘分区使用率过高！"
          description: "{{$labels.instance}} 的 {{$labels.mountpoint}} 分区使用率为 {{ printf \"%.2f\" $value }}%，已超过90%"

配置告警组件 告警文件路径 采集node信息

vim /usr/local/prometheus/prometheus.yml

[root@localhost _data]# cat prometheus.yml
# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).
# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          - 10.60.65.66:7003  # 部署Alertmanager的节点和端口
​
# 配置告警规则文件
# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  - "rules/*.yml"
​
# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "node"
    static_configs:
            - targets: ["10.60.65.xx:9100","10.60.65.xx:9100"]

Alertmanager配置

部署 Alertmanager

mkdir /usr/local/alertmanager
docker run -d --name test -p 7003:9093 prom/alertmanager
docker cp test:/etc/alertmanager/alertmanager.yml /usr/local/alertmanager/
docker rm -f test

cat > alertmanager.yml <<EOF
route:
  group_by: ['alertname']
  group_wait: 30s
  group_interval: 1m
  repeat_interval: 5h
  receiver: 'dingtalk-receiver'
​
receivers:
- name: 'dingtalk-receiver'
  webhook_configs:
  - url: 'http://10.60.65.66:8060/dingtalk/default/send' # prometheus-webhook-dingtalk部署节点和端口
    send_resolved: true
​
inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']
EOF

docker run -d --name alertmanager -p 7003:9093 -v /usr/local/alertmanager/:/etc/alertmanager/  prom/alertmanager

Prometheus-webhook-dingtalk配置

mkdir /usr/local/dingtalk
​
cat > /usr/local/dingtalk/config.yml <<EOF
targets:
  default:
    url: https://oapi.dingtalk.com/robot/send?access_token=钉钉机器人key
    secret: 加签的秘钥
    message:
      title: 'Prometheus 告警通知'
      text: |
        {{ range .Alerts }}
        > **[Prometheus 告警通知]**
        >
        > **🔥 告警级别**: {{ .Labels.severity | toUpper }}
        > **🖥️ 实例地址**: {{ .Labels.instance }}
        > **📌 告警名称**: {{ .Labels.alertname }}
        > **📝 告警摘要**: {{ .Annotations.summary }}
        > **📄 详细描述**: {{ .Annotations.description }}
        > **⏰ 触发时间**: {{ (.StartsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}
        > **📊 当前状态**: {{ if eq .Status "resolved" }}✅ 已恢复（恢复时间: {{ (.EndsAt.Add 28800e9).Format "2006-01-02 15:04:05" }}）{{ else }}🚨 正在告警{{ end }}
        >
        > ---
        {{ end }}
EOF

docker run -d --name dingtalk-webhook \
  -p 8060:8060 \
  -v /usr/local/dingtalk/config.yml:/config.yml \
  timonwong/prometheus-webhook-dingtalk:latest \
  --config.file=/config.yml

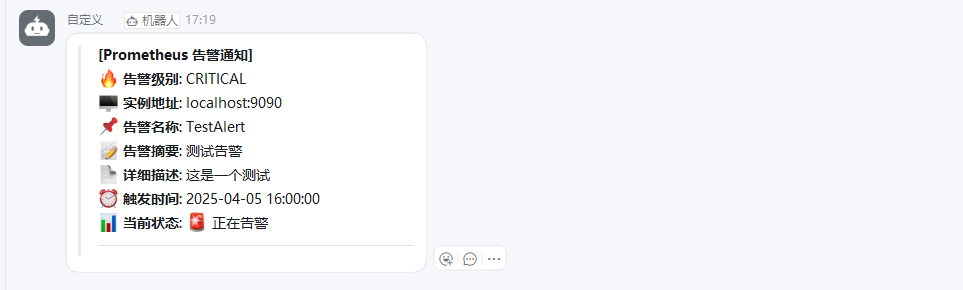

使用部署Prometheus-webhook-dingtalk机器执行，测试信息是否发送成功

curl -X POST http://localhost:8060/dingtalk/default/send   -H "Content-Type: application/json"   -d '{
    "version": "4",
    "groupKey": "{}",
    "status": "firing",
    "receiver": "dingtalk",
    "groupLabels": {},
    "commonLabels": {
      "alertname": "TestAlert",
      "instance": "localhost:9090",
      "severity": "critical"
    },
    "commonAnnotations": {
      "summary": "测试告警",
      "description": "这是一个测试"
    },
    "externalURL": "http://localhost:9093",
    "alerts": [
      {
        "status": "firing",
        "labels": {
          "alertname": "TestAlert",
          "instance": "localhost:9090",
          "severity": "critical"
        },
        "annotations": {
          "summary": "测试告警",
          "description": "这是一个测试"
        },
        "startsAt": "2025-04-05T08:00:00Z",
        "endsAt": "0001-01-01T00:00:00Z",
        "generatorURL": ""
      }
    ]
  }'

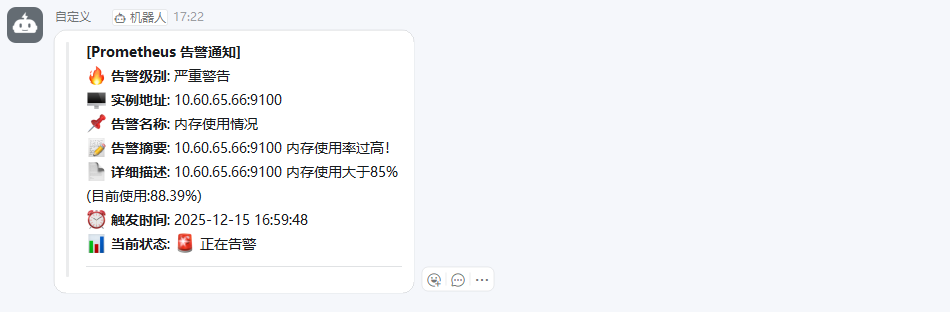

设备异常告警信息
